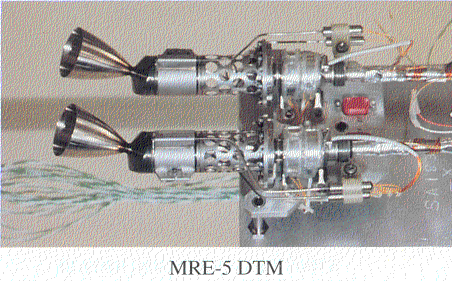

MRE-5 Monopropellant Thruster (TRW)
For more than 25 years, TRW monopropellant thrusters have provided continuous on-orbit delta velocity and attitude control service for a variety of spacecraft. All thrusters share the unique TRW head design, utilize Shell 405 catalyst, and incorporate bed loadings consistent with long life.
| Specification | |
|---|---|
| Thrust at max. operating pressure | 36 N at 400 psia |
| Thrust at 275 psia inlet pressure | 28 N (6.3 lbf) |
| Steady State Specific Impulse/th> | 232 sec |
| Minimum impulse-bit at 275 psia | 0.11 lbs-sec |
| Envelope (width * length) | 145 mm * 264 mm |
| Weight (single thruster module) | NA |
| Weight (dual thruster module) | 1.5 kg (3.2 lbm) |
| Maximum throughput | 456 kg |
| Maximum cycles | 28,512 |
| Operating Pressure Range | 70-475 psia |
| Thruster Valve Power at 28 Vdc | 30 W |
