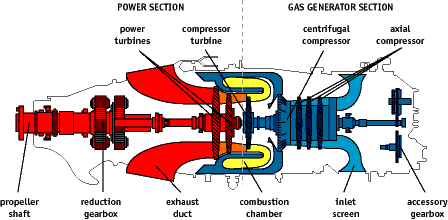

PT6A

(Pratt & Whitney Canada)

Another common, all-purpose turboprop engine. There have been 60 versions made since its 1964 introduction. Data is presented for the PT6A-135B, the latest model. Power for various models ranges from 500 to 1400 horsepower.

PT6A

Engine statistics
Specification
Application Light commuters, corporate, military trainers, utility.
T/O Power 750 shp
T/O SFC 0.659
Cruise Power
Cruise SFC
Max pwr. pressure ratio 7
Length (in) 63
Dia (in) 19
Weight 346 lb
