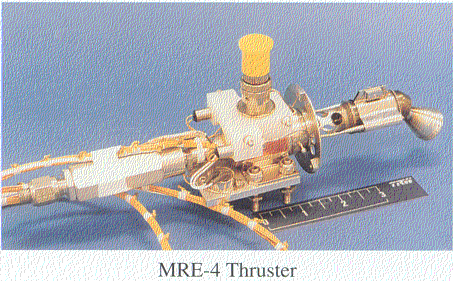

MRE-4 Monopropellant Thruster (TRW)
For more than 25 years, TRW monopropellant thrusters have provided continuous on-orbit delta velocity and attitude control service for a variety of spacecraft. All thrusters share the unique TRW head design, utilize Shell 405 catalyst, and incorporate bed loadings consistent with long life.
| Specification | |
|---|---|
| Thrust at max. operating pressure | 18 N at 600 psia |
| Thrust at 275 psia inlet pressure | 9.8 N (2.2 lbf) |
| Steady State Specific Impulse/th> | 217 sec |
| Minimum impulse-bit at 275 psia | 0.054 lbs-sec |
| Envelope (width * length) | 61 mm * 206 mm |
| Weight (single thruster module) | 0.5 kg |
| Weight (dual thruster module) | NA |
| Maximum throughput | 249 kg |
| Maximum cycles | 507,000 |
| Operating Pressure Range | 50-600 psia |
| Thruster Valve Power at 28 Vdc | 30 W |
