MRE-1 Monopropellant Thruster (TRW)

The MRE-1 is the NASA standard 5-newton thruster. As the workhorse thruster for much of TRW's spacecraft fleet, MRE-1 has successfully performed attitude control duties on the Pioneer 10 and 11 mission to the outer planets and beyond the solar system, the highly acclaimed High Energy Astronomy Observatory trio of pointing and scanning missions to observe the X-ray universe, and heavy duty FltSatCom and Tracking and Data Relay Satellite three-axis stabilized geosynchronous communications satellites - while establishing new longevity records.

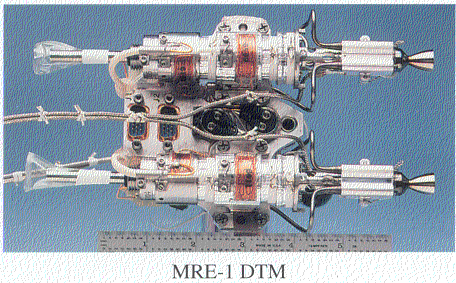

MRE-1 Monopropellant Thruster
Engine statistics
Specification
Propellants N2H4
Total Impulse 260,000 lbf-sec
Propellant Throughput 1,200 lbm
Total Pulses 458,000
Total Demonstrated Firing Time 90 hr
Bed Ambient, Pulses 261,196
Maximum Single-Burn Duration 11,200 sec
Minimum Single-Burn Duration 0.02 sec
Random Vibration 21g rms
Inlet Pressure 565-80 psia
Weight (Dual Thruster Module) 1.8 lbm
