"For the first time, we have created wearable electronic devices that someone can easily attach to their skin and are made out of paper to lower the cost of personalized medicine," said Ramses Martinez, a Purdue assistant professor of industrial engineering and biomedical engineering, who led the research team.

Their technology aligns with Purdue's Giant Leaps celebration, acknowledging the university's global advancements made in health as part of Purdue's 150th anniversary. This is one of the four themes of the yearlong celebration's Ideas Festival, designed to showcase Purdue as an intellectual center solving real-world issues.

The "smart stickers" are made of cellulose, which is both biocompatible and breathable. They can be used to monitor physical activity and alert a wearer about possible health risks in real time.

Health professionals could use the Purdue stickers as implantable sensors to monitor the sleep of patients because they conform to internal organs without causing any adverse reactions. Athletes could also use the technology to monitor their health while exercising and swimming.

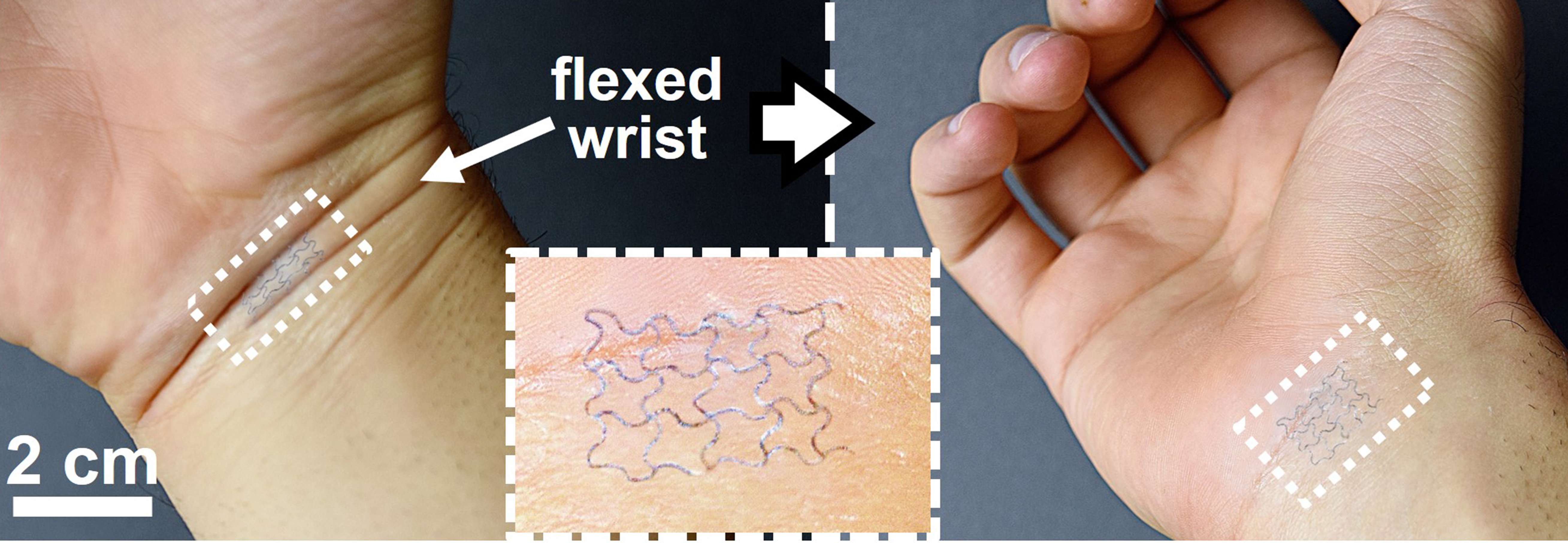

These stickers are patterned in serpentine shapes to make the devices as thin and stretchable as skin, making them imperceptible for the wearer.

Since paper degrades quickly when it gets wet and human skin is prone to be covered in sweat, these stickers were coated with molecules that repel water, oil, dust and bacteria. Each sticker costs about a nickel to produce and can be made using printing and manufacturing technologies similar to those used to print books at high speed.

“The low cost of these wearable devices and their compatibility with large-scale manufacturing techniques will enable the quick adoption of these new fully disposable, wearable sensors in a variety of health care applications requiring single-use diagnostic systems,” Martinez said.

The technology is patented through the Purdue Office of Technology Commercialization. They are continuing to look for partners to test and commercialize their technology.

The Purdue Office of Technology Commercialization operates one of the most comprehensive technology transfer programs among leading research universities in the U.S. Services provided by this office support the economic development initiatives of Purdue University and benefit the university's academic activities. The office is managed by the Purdue Research Foundation, which received the 2016 Innovation and Economic Prosperity Universities Award for Innovation from the Association of Public and Land-grant Universities. For more information about funding and investment opportunities in startups based on a Purdue innovation, contact the Purdue Foundry at foundry@prf.org. For more information on licensing a Purdue innovation, contact the Office of Technology Commercialization at otcip@prf.org. The Purdue Research Foundation is a private, nonprofit foundation created to advance the mission of Purdue University.

Watch YouTube video: Mounting EPEDs Epidermal Paper Based Electronics on skin

Writer: Chris Adam, 765-588-3341, cladam@prf.org, “Simple stickers may save lives of heart patients, athletes and lower medical costs for families”

Source: Ramses Martinez, rmartinez@purdue.edu

ABSTRACT

Wearable and Implantable Epidermal Paper-Based Electronics

Ramses Martinez, Purdue University, West Lafayette, IN, USA

DOI: 10.1021/acsami.8b11020
