Purdue University
School of Civil Engineering
CE 361 Introduction to Transportation Engineering
Wed. 2 September 2020
Lesson 3 on Traffic Flow Models and Analysis:
Continuous and Deterministic Flow
Lesson Objectives:
By the end of this lesson,
the student will be able to ...
-
Derive and explain the relationships involving speed, flow, and density.
-
Fit traffic data to one proposed model of traffic flow.
Prep: Read Chapter 2 Section 3
Course offering at Purdue: CE463 Highway Traffic Characteristics
Theme Music:
-
Interstate Love Song
by Stone Temple Pilots, 1994,
lyrics.
-
Rockin' Down the Highway, Doobie Brothers, 1972, 3:22.
-
Go with the Flow,
Queens of the Stone Age (2002, 3:17) or
Northern Lite (2007, 3:36)
-
Let it Go, Let it Flow, Dave Mason Band (3:16)
Outline of Likely Topics
-
Speed-Density relationship
-
Speed vs. flow rates
-
Density vs. flow rates
-
The Greenshields Model
-

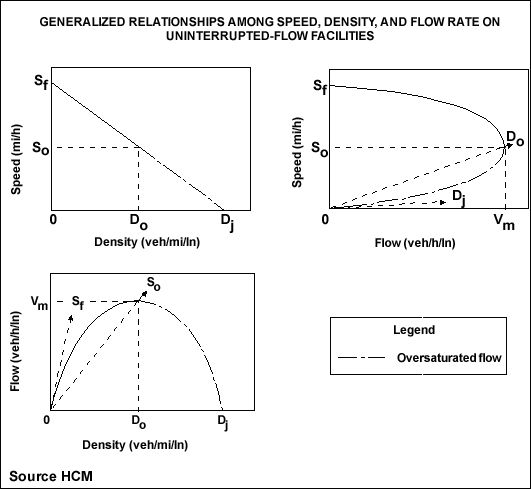

Speed-flow-density relationships
-
Fitting models to data
-
Shockwave traffic jams recreated for first time
