ENTERING OR CALLING VI
To call the VI editor and begin an editing session,
type at the UNIX prompt (%):
where filename is the name of the file that you want to edit.
VI automatically sets aside a temporary buffer
as a working space for use during this editing session.
If the file you specify when calling VI
does not already exist in your current working directory,
a new file will be created with the name that you have specified.
For example, if you wanted to create a new file called jobjar,
you would type:
The screen will flicker and clear and you will see:
When the VI editor creates a new file as in the previous example,
the cursor will be placed on the screen
in the home position (upper left-hand corner).
The cursor on most terminals is a rectangle that completely covers
the character space it is situated upon
and reflects your current position within the buffer.
Below the cursor
along the left side of the screen,
is a tilde ( ~ ) character
positioned in the first character space on each line.
The tilde is used to indicate a void area in the file where
there are no characters, not even blank spaces.
At the bottom of the screen,
the editor displays a file information line
which presents the name of the file being edited,
in this case jobjar,
followed by "[New file]" to indicate that this is a new file
and it has never been opened before.
The VI editor allows a user to modify and add material
to an already existing file.
This is done by using the name of a current file when calling VI.
VI will then fetch a copy of the contents of the specified file
from disk storage, leaving the original undisturbed,
and place the copy into the buffer.
It is here, in the buffer, where VI permits you to do your editing.
The idea of editing in the buffer is very beneficial,
because if you really botch up your editing job (such as deleting a major
section) the original file on the disk remains unaffected.
Upon opening a file,
VI will display the first screenful of text
starting at the top of the file,
place the cursor in the home position,
and print the file information line which displays the name of the file
along with the number of lines and characters it contains
on the last line of the screen.

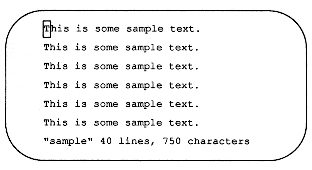

For example,
to edit the file sample which has 40 lines and 750 characters,
call the VI editor with this command:
The screen will flicker and clear.
Then you will see:
As shown in this example the cursor sits in the home position,
it completely overlays the first character of the file.
When the cursor is moved,
this character will be exposed, unchanged.
In general,
most terminal screens will display only 20 to 24 lines of text.
If a file has more text than will fit on one screen,
the unviewed material remains in the buffer until needed.
As mentioned before,
when the VI editor is invoked a temporary working area
is created called a buffer.
This buffer or work space is only available for your use while you are
using the editor.
It is into this buffer that VI either places a duplicate copy
of the file as it exists on the disk or creates a new file.
When you exit the editor,
this work area is discarded.
Disk storage, on the other hand,
can be thought of as a permanent storehouse
for files until discarded by using the UNIX remove command.
Few things are more upsetting than to spend many hours
keying information into a file,
simply to have a careless keystroke close the buffer and destroy your work.
Material you have keyed into the buffer file is
only retained for future access when the file is "saved" on the disk.
Material not "saved" on the disk is discarded when exiting VI
and the buffer is closed.

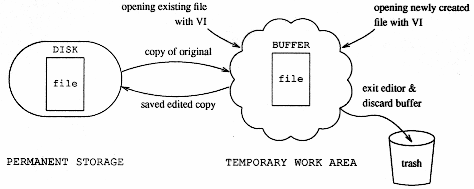

The next figure depicts this relationship.
To avoid the frustration of rekeying material,
you should periodically "save" the work done to that point
by "writing" the new material or alteration to the permanent disk storage.
This is done by typing ":w"
(write).
As soon as you type ":"
the cursor hops to the bottom of the screen
and it is here that the complete ":w"
command is echoed.
NOTE: It is difficult in simple drawings to show the cursor and the command in both
the position where the command is issued plus the location
at the bottom of the screen where it is echoed;
therefore for brevity, in the following examples you will see the command
presented at the point in the text where it is issued.
When the user instructs the editor to save material with ":w",
a copy of all material in the buffer is transported to the disk,
overwriting the previous contents of the disk file.
As a general rule,
it is suggested that you "write" material to the disk every 15 to 20 minutes,
or after you have keyed in enough information or corrections that it would
irritate you if you needed to rekey it in all over again.
On the next page is an example of a file containing 3 lines of original text
and the user keys in 2 additional lines followed with ":w".
When the ":w" command is issued,
the disk file copy will be overwritten with the 5 lines
as they exist in the temporary work area.

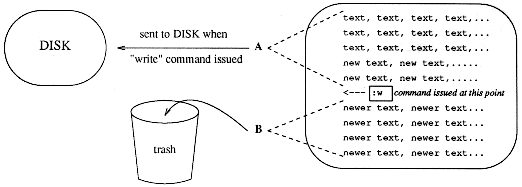

This material is referenced as section "A" in the next example.
What happens to your file if the system crashes or you make a dumb
mistake in the midst of an editing session?
Well, if your file looked like the one below when disaster struck,
all material in section "A" would be safe because the ":w"
would have caused everything to that point to be written to the disk.
The material in section "B" might be completely or
partially destroyed because it only exists on the temporary buffer.
An editing session can last for minutes or hours
but the user can be assured that once material is written to the disk,
the storage is permanent and the material will remain there until needed again.
When you have finished your editing,
you need to inform VI that you wish to "quit" the editor
and return to your shell.
This is done by typing ":q" (quit).
VI will respond by updating the file information line
with the name of your file in quotes followed by the
current number of lines and characters.
After exiting the editor,
the UNIX prompt will again appear on your screen.
VI requires that the buffer be empty of newly edited material
when you type ":q".
Thus if you have made any alterations
to the file since the last time you typed ":w",
VI will not know how you want these changes handled.
The editor will print the statement:
at the bottom of the screen.
If you decide you want to retain these changes,
you must type ":w" before issuing a new ":q".
Most system users get in the habit of combining these two commands
into a single command ":wq" (write and quit).
The VI editor allows a user to repeatedly make alterations to a file.
This is very handy when you are preparing a term paper, computer program,
or report because each time you reread a section
you conjure up better ways to word your thoughts.

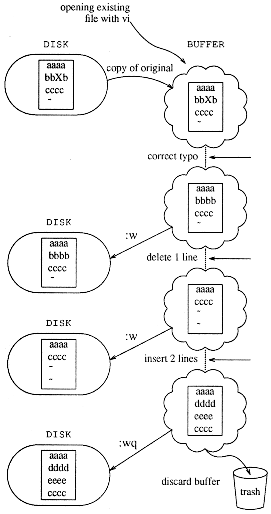

Consider the simple file in this example,
The file has 3 lines when opened and is then edited as follows:
Sometimes when working on a file,
it is desirable to leave the editor without saving the modifications.
This is accomplished by typing ":quit!".
You might use this command if you started to edit a file
and do not like the way the changes are shaping up.
When you use this command,
VI will immediately discard all alterations
made to your file since the last ":w".
If you have not used a ":w"
since opening the file,
all changes since the beginning of the editing session will be abandoned.

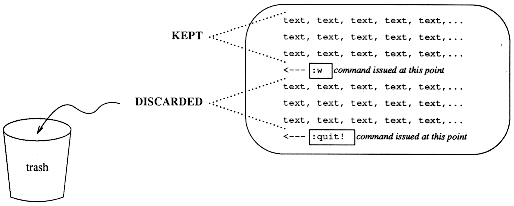

The action of the ":quit!" command is illustrated below.
Initially when the file was opened,
it contained 3 lines.
Some form of editing was done on these lines
and the work was saved with the ":w" command.
Additional material was keyed in,
but the decision was made to discard the newer additions.
When the
":quit!"
command is issued, all text back to the ":w"
is disposed of.
BE CAREFUL!!!
When you use the
":quit!"
command, the editor believes you know what you are doing
and will immediately follow your instructions.
You will not have a second chance to retrieve your work
once the buffer is closed and the file is discarded;
so, key in this command with utmost caution.

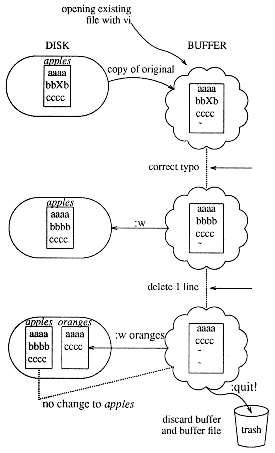

There may be a time when you are editing a file and can not decide
if you want to keep the current disk copy or retain the most recent
changes.
VI offers you a way to "have your cake and eat it too".
This is done by writing the current contents of the buffer into a new file.
For example,
if the original file is named apples,
you could write the material from the buffer into a file named oranges
then exit the editor discarding the buffer contents with ":quit".
The file oranges contains the altered text and the file apples
contains text as of the last issued ":w".
The sample file, apples, has 3 lines when opened
and is then edited as follows:
The VI editor is a sophisticated editor with a wide range
of commands, yet the basic structure is simple.
There are two modes of operation in VI,
command mode and text input mode.
Command mode is where you tell the editor what you want it to do.
Text input mode is the portion of the editor where you key in
material (text, data, or program code) that you want retained in the file.
Text input mode can only be accessed from command mode.
The person who is able to visualize and separate the two modes
of operation will very quickly master the control of this editor.

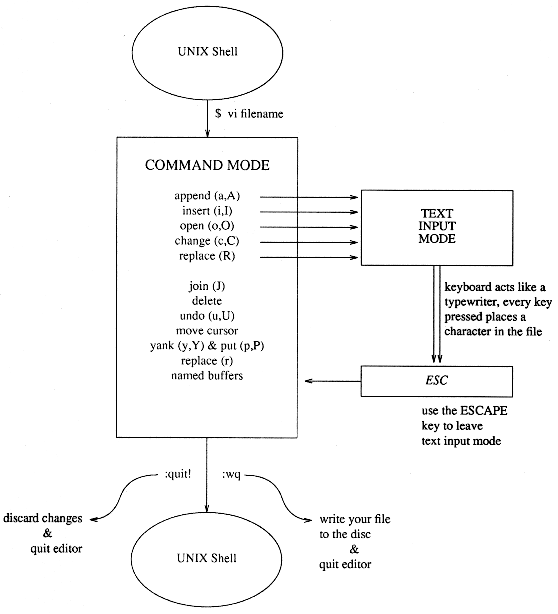

The two modes of operation are illustrated in the block diagram
at the end of this section.
Command mode is the initial state encountered
when VI is invoked from the UNIX shell.
It is in this state that VI
receives instructions on what action is required, such as:
It is important for the new user to realize
that when the majority of VI commands are keyed in,
the editor does not echo the command back on the screen;
rather, it simply executes the response the command requires.
In general,
the steps given below will be repeated again and again
each editing session while in command mode:
After a short time of using the editor,
these actions will become second nature to you
and performance of them will be done without concentration.
Text input mode is the second side of the VI editor.
It is in this mode that you will key in the majority of text into your file.
To enter text input mode a user would type,
while in command mode, the editing command
to append (a, A), insert (i, I), open (o, O), change (c,C), or replace (R).
Without the initial command being echoed to the screen,
the immediate response is for VI
to transfer into text input mode.
The user may see the cursor jump to a new location
depending on the command issued.
While in text input mode,
all subsequent keystrokes will be directly
reflected in the file.
The user may now key in as much information as desired;
a single character, a chapter of a book, or more.
The user leaves text input mode by depressing the
"ESC"
key.
More information is provided on how to use the append, insert, open, change
and replace commands in section 7.
Most editing sessions include moving back and forth
between command mode and text input mode.
For example,
a user may decide to change a word in one sentence (text input mode),
move to the end of the file (command mode),
add many additional pages of text (text input mode),
backup half a page (command mode),
correct some typos (text input mode),
move again (command mode), and then insert
a sentence in the middle of an existing paragraph (text input mode).
This sounds complex,
but don't worry,
it is much easier to do than to read about.
As explained in the Entering VI section,
when the VI editor is called,
the opening screen will show the
cursor located in the home position.
If VI is opening an existing file,
you will see the first 20 to 24 lines of the file on the screen.
All additional lines copied from the disk will also be in the buffer,
but not viewable on the screen.
If the home position is the location
from which you want to do your editing,
then you are in great shape;
unfortunately, most editing is performed at other locations within the file.
So, your first course of action is to issue
the proper text positioning command to cause the necessary
text to appear on the terminal screen.
This can be done from command mode by scrolling the screen,
using the goto command,
or doing a pattern search.

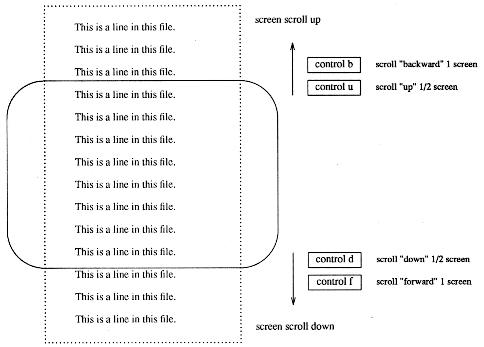

To visualize scrolling,
imagine that the file is one long, continuous page (like an ancient scroll)
and that only a portion of the text is revealed on the screen at any one time.
Thus, the only way to see another section of text is to realign
the terminal window to the file.
Depending on your point of reference,
the user may imagine that the terminal screen floats up and down over
a stationary text file,
or that the text is pulled up and down with only a portion of it exposed
to the stationary terminal screen.
Either point of view arrives at the same result.
However, the designers of the VI editor have decided that the screen
floats up and down with respect to the file.
As a result,
the scrolling commands reflect the direction the screen moves past the text.
These commands are mnemonic in nature.
In other words,
there exists a relationship between the command and its meaning.
For example, when giving the command "control d",
the terminal window moves "downward" toward the end of the file.
The command "control u",
moves the terminal window "upward"
toward the first line of the file.
Thus, the window is "pushed" up or down revealing new text that either
precedes or follows the current screen.
Scrolling through one screen after another
in order to reach the portion of the text you want to look at
can, at times, be laborious as well as boring.
Sometimes it is easier to move the screen window
directly to the location you are interested in viewing.
If you know the line number or the general area you want to access,
repositioning can be accomplished by using the "G" (goto) command.
The goto command, preceded by a line number,
such as "250G",
will position the cursor on the first character space
of line number 250.
If the requested line is not currently on the screen,
the screen will be redrawn with the requested line
situated in the window.
Typing "1G"
will move the cursor to the first line of the file and redraw
the screen if necessary.
Not specifying a line number when typing "G",
will move the cursor to the last line in the file.
It is frequently handy to be able to pop to the beginning or end of a file;
so "G" and "1G"
are important commands to remember.
Discovering your current line number
and overall file size information can be gotten by typing
"control g".
The editor will then print:
the file name,
the line number,
the number of lines in the file,
and the percentage of the way through the file all at the bottom of the screen.
Such a line might look like:
Generally, new users find the "G"
command easier to use if all lines are numbered.
For more information on how you can have line numbers added to your files,
refer to the Miscellaneous Information section.
Another method to reposition yourself within a file
is by identifying a word, phrase,
or string of characters for the editor to locate.
To institute a search,
you type a forward slash mark ( / ) followed by a string of characters,
terminated by a "RETURN".
The cursor will hop to the bottom of the screen
where the search command will be echoed.
For example,
if you wanted to find the word "catnip" in your file,
you would type:
The editor will hunt downward from your current position
in the file for this pattern
and will then place the cursor on the first letter
of next occurrence of "catnip".
If this is not the "catnip" you are seeking, type in
"n" (next), and the editor will continue the search downward.
The "n"
may be repeated as often as necessary
to find the character string sought.

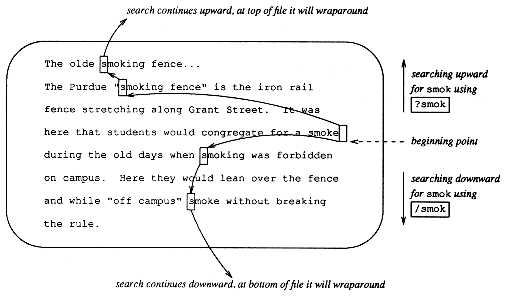

Sometimes you will know the contents of your file well enough to know
that the occurrence of "catnip" you want is above your current location.
To search upward, type "?catnip"
and the editor will search toward line one.
The "n" command will repeat this search.
Searching with the " / " or " ? " will ultimately process through the complete file.
If you are searching upward
and the pattern is not found before reaching the top of the file,
the search will wraparound and the seeking will continue from the
last line of the file until the pattern is found.
The reverse is true when searching downward.
After using the VI editor for a while,
some users like to add the upper-case "N"
command to their "bag of tricks".
The "N"
command reverses the direction of the search,
i.e. if lower-case "n"
is searching downward, upper-case "N"
searches upward, and vice-versa.
If the pattern you have instructed VI to search for is not
found throughout the entire file,
the editor will respond at the bottom of the screen with:
Remember, the editor will look per your instructions for an exact
duplicate of the character string you have given it.
If the editor does not locate your pattern,
first check to see if you have mistyped the pattern you requested
the editor to find.
Note, spaces or absence of spaces can be important.
If this is not the case,
give thought to the possibility that the object in the file you are
searching for is misspelled.
In that case, try the pattern search again but this time
try using only a portion of the word,
such as "tnip" rather than the full word "catnip".
Congratulations, you have succeeded in getting the text you wanted
to appear on the terminal screen.
Now that you can see the target text,
you can proceed to move in closer "for the kill".
This will probably require a combination of major and minor cursor moves.
Cursor movement commands are issued in command mode.
Sometimes the cursor can be a substantial distance from the next editing
position on the screen.
Large vertical jumps may be made
with the use of the mnemonic commands:
"H" for high or home, "M"
for middle, or "L" for low or last screen line.
When you type "H" "M" or "L"
the cursor will immediately reposition to the first character space on the
highest, middle, or lowest screen line.
After using these three commands for a while,
you may decide to become more precise in moving the cursor
by adding a number to the command.
For example, "3H"
would move the cursor to the third line from the top of the screen.
The command "3L"
would likewise move the cursor to the third line from the bottom of the screen.
As you may guess,
the middle is always the middle and you can not fancy up the
"M" command.
The most common means used to move the cursor is by use of "arrow" keys.
Pressing an arrow key "\(ua" "\(da"
"->" or "<-"
will move the cursor one space
in the direction indicated.
If the terminal you are using does not have arrow keys,
you can use the "direction" keys
"h" (left),
"j" (down),
"k" (up),
and
"l" (right)
to move the cursor one space on the screen.
Pressing direction keys in command mode will move the cursor
as indicated in the figure to the right.
Watch out, many people mix up the lower-case "l"
with the lower-case "i" or the numeral "1".
The "RETURN" key is similar to the "j"
key in that it moves the cursor down one line.
However, the "RETURN"
key always positions the cursor at the beginning of the next line down;
whereas, the "j"
key moves the cursor straight down from its present position,
which may be the middle of a line.
Moving several spaces may be accomplished by repeatedly pressing the
"RETURN",
direction or arrow key; such as,
"k"
"k"
"k"
to move upward 3 lines.
You can also precede any of these keys with a number
and achieve the same results,
"3k".
Most speed typists prefer to move the cursor with the direction keys
rather than arrow keys
because they do not have to remove their fingers
from the center of the keyboard.
6.3 Moving within the Line
Once you have located the cursor on the correct line,
it may be necessary to fine tune the placement of the cursor
still further.
You already possess the ability to move right and left by way of
arrow or direction keys:
"l" and "->" (right), or "h" and "<-" (left);
and for a while this will probably be all you need to know.
However, after you have worked with the VI editor for a while,
it would be to your advantage to add the following line movement
"scopes" to your command arsenal.
Scope refers to the amount of text unit encompassed by a command key.

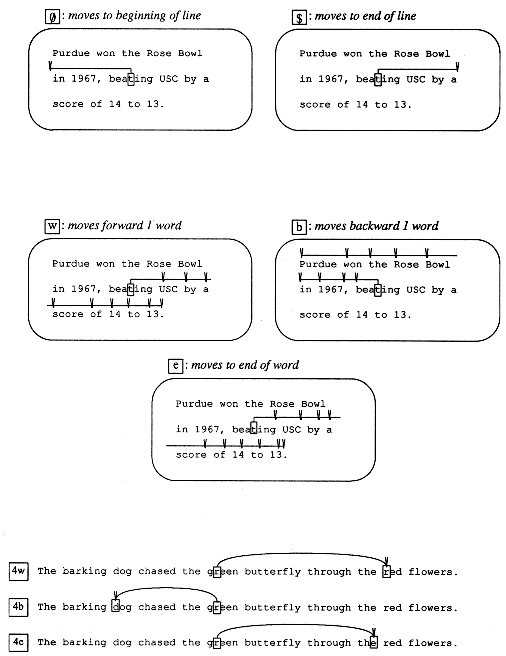

The figure on the next page provides an illustration of
how the cursor would move using the scope keys.
When you experiment with these keys on a terminal screen,
you will notice that the "0" and "$"
keys will jump to the beginning or end of the line the cursor is on,
but will move no further.
The "w", "b", "e"
keys, on the other hand,
will wraparound to the line below if moving right,
or to the line above if moving left.
The mini terminal screens on the next page
show the path taken when a scope key is pressed
repeatedly causing the cursor to reposition again and again.
It is important to remember that the cursor position
serves as a reference point for all scopes.
Notice that when moving with the "b" or "e" key,
if the cursor is sitting in the middle of a word,
the remainder of that word is counted as a scope unit.
Additionally, the lower-case scopes treat punctuation marks
as a scope unit.
In other words,
a comma or period will be treated like a word in itself.
As with direction and arrow keys, the jumping power of
"w", "b", or "e"
can be multiplied by preceding the key with a number.
At the bottom of the next page are three sentences illustrating
the effect of instructing the scope key to jump four units.
In each example,
the cursor is originally sitting on the "r" of the word "green".
The arrow tip points to the destination location.
VI offers many variations for getting an editing job done.
One of vi's "more-than-one-way-to-skin-a-cat" options,
is the capitalization of the "W" "B" "E" keys.
The action of the upper-case scope keys is the same
as the lower-case scope keys,
except the upper-case scope keys DO NOT see punctuation marks
as a scope unit; therefore, DO NOT stop for punctuation marks.
Use the form that works best for you...most people do not try to
remember both variations.
The power of scopes is greatly increased when combined with operators.
This concept is discussed further in the Correcting Text section.
Every editor provides a method to place text into a file
and the VI editor offers you not one, but several convenient methods.
For your sanity,
it is suggested you read through this section,
select one way of adding text,
practice that method until you become proficient,
and then begin to include the other methods as your skills increase.
Attempting to learn to use all commands at once,
while possible, leads to frustration and angry words.
The append, insert, and open commands all move the editor from
command mode into text input mode.
To use these commands efficiently,
it is necessary to have a firm understanding of the meaning of these
two modes.
More information about modes is contained in the
Organization of VI section.
As you recall,
while in text input mode the terminal keyboard acts just like
a typewriter and every key pressed enters a character into your
file.
The most common error experienced by users when using VI is
forgetting which mode they are in.
This forgetfulness often leads to
trying to issue a command while in text input mode.
This results in an odd combination of characters being placed into the text
which frequently causes the user to direct negative words at the terminal
followed by a little clean-up editing.
If you are ever in doubt about which mode you are in,
press the "ESC" key.
If you are in command mode when you press "ESC",
the terminal will "beep".
If you are in text input mode, all will be silent.
Of course, pressing the "ESC"
key while in text input mode has now placed you in command mode,
but at least you know where you are.
A user may decide to place text into a brand new file with either
the insert or append command.
The resulting action as seen by the user is the same with both commands.
The open command can also be used on a new file,
but differs from insert and append because open adds a blank line.
Experiment with these commands to see their differences.
The append command means "to add after" and comes in two forms,
the lower-case "a" and upper-case "A".
This frequently used command allows you to place as much information
into a new file or an existing file as you want
until you exit text input mode by pressing the "ESC"
key and return to command mode.
Pressing the "a"
key will cause the cursor to move one space to the right of the current
cursor position and await the new text.
On most terminals,
when you are appending text,
the existing text seems to be overwritten.
This is only temporary.
As soon as you exit text input mode with the "ESC"
key, the screen is redrawn
and the material that was temporarily covered again appears.
The "A,"
form of append works in much the same way,
except when the command is issued
the cursor jumps to the end of the line
and it is at this point that you enter text input mode
and proceed to add text.
Pressing "ESC"
returns you to command mode and the screen is redrawn.

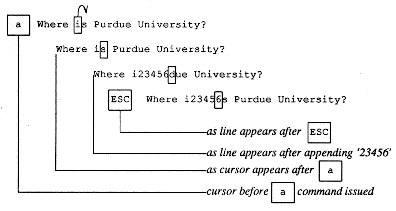

Below is an example of the lower-case "a"
command appending new text after (to the right of) the cursor:

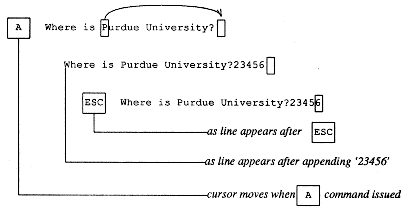

This is an example of the upper-case "A"
command which appends after the last character in the line:
The insert command is used to insert text into the file being edited.
The lower-case "i"
command inserts the new text you type to the left of the cursor.
The upper-case "I"
command inserts the text at the beginning of the current line.
By giving the insert command,
text input mode is activated,
allowing you to enter as much text as you want.
To stop entering text you must press the "ESC" key.
On most terminals while you are inserting new material,
old text seems to be overwritten.
All this text will reappear unchanged after the newly inserted text
when you exit text input mode
and reenter command mode by pressing the "ESC" key.
The example below demonstrates how the lower-case "i"
command functions inserting new text before (to the left of) the cursor:

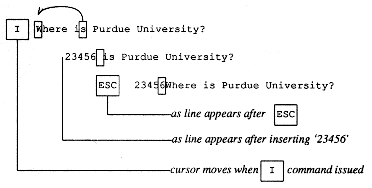

This example illustrates the upper-case "I"
command which inserts new text before (to the left of) the first
character in the line:
The open command is used to create a blank line in the file
where additional text is to be typed in.
The lower-case "o"
command opens a new line below the line the cursor is on
and the upper-case "O"
command opens a new line above the line the cursor is on.
By giving the open command,
text input mode is activated and a blank line will appear on the screen,
and the cursor will relocate to the first character space on this new line.
You may now enter as much text as you want.
To stop entering text you must press the "ESC" key.

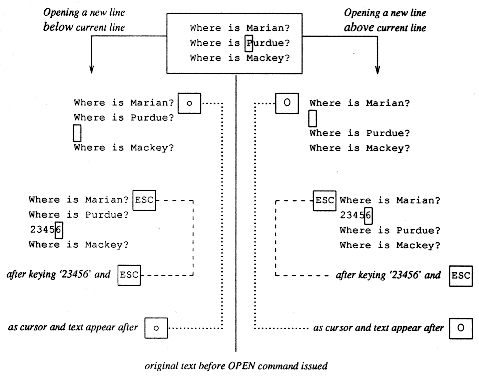

The example below shows the use of the open commands.
The left half of the example illustrates the lower-case "o"
command opening a line below the current line, and
the right half illustrates the upper-case "O"
command opening a line above the current line.
The read command is another method of placing information into a file.
It is quick, easy and useful.
After you have mastered the control of the VI editor,
come back and reread this section and practice this command.
It is too handy not to make use of it.
This command allows the user to place a copy
of another file into the current file.
For example, you might keep a special file containing
the heading required for all your lab assignments
or a tricky, tough-to-type equation.
In order to avoid retyping this information,
all you do is tell the editor to "read" your special file into your
current file, and like magic,
this material from the special file becomes part of your current file
with no pain and no typos.
While in command mode and
with the cursor on the line above where you want the special file
read in, type:
A copy of your special file
will appear directly below the line the cursor was sitting on
and the cursor will reposition to the first character of the first line
in the newly added text.

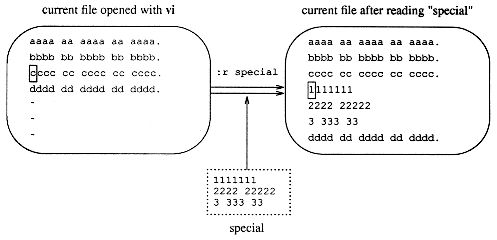

Here is an example of the read command:
Perfection is difficult to achieve;
especially on the first try.
It is probable that sooner or later (probably sooner) you will
need to change the material you have placed in a file.
This section explains how to alter characters, words, and lines
by combining the action of an operator (delete or change)
with a scope to result in a more powerful command.
The delete command is used in command mode to remove portions of text from
the file being edited.

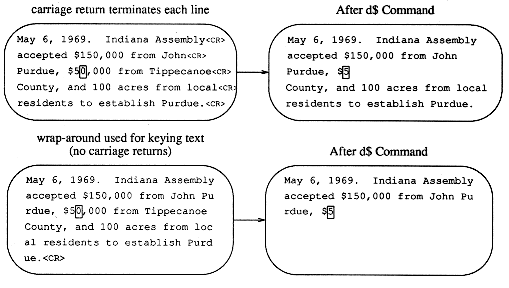

The delete command is available for use in either the upper-case "D"
format as a command, or in the lower-case "d"
format as an operator.
The upper-case
D"
command removes the text on the current line from the cursor
to the end of the line.
Most people tend to forget the "D"
and instead use the "d" with the addition of scopes.
The lower-case "d"
operator is very flexible because it can be used in conjunction with scopes
to delete characters, words, and lines.
The scope must be specified after the delete operator.

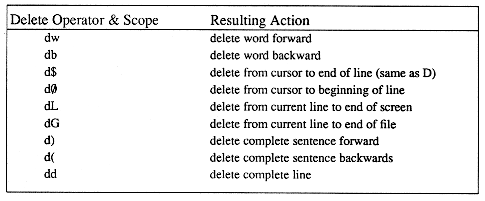

Some of the most common scopes used with the delete operator
shown in the next table.
It is important to remember that the current cursor position serves
as the reference point for all of the scopes used with the delete operator.
Notice that when the cursor is sitting in the middle of a word,
the remainder of that word is counted as a scope unit.
As with direction, arrow, or scope keys,
the combination of "operator-scope" commands can be increased
by preceding them with a number.
Thus in the following example, if you type "2dw"
with the cursor on the "f" of the word "finished",
the result will be that the words "finished" and "this" are deleted.
Notice, that if the cursor is sitting midpoint in a word,
such as the "h" of "finished",
only the remaining portion of that word is removed plus the next word, "this".
It will often be the case that you will want to delete whole lines.
This can be accomplished by typing "dd".
On most terminals when you delete a line,
the editor will erase the line on the screen
and replace it with an "@" character.
This character symbolizes an empty line,
much as the tilde (~) is used,
and is not inserted into the text.
This is done to save the cpu (central processing unit)
the time necessary to repeatedly redraw the screen.
If the "@" signs makes it difficult for you to read your file,
type "control r"
(some terminals require "control l")
and the screen will be redrawn.
For more information on redrawing the screen
see the Miscellaneous Informationsection.
As with any operator-scope combination,
you can also delete more than one line at a time by preceding the
"dd" command with a number.
Typing "2dd" will delete two consecutive lines beginning with the current line.

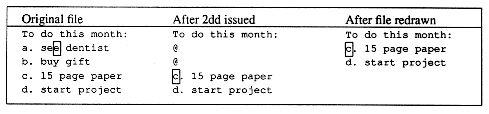

In the next example,
if the cursor was sitting on the second line of a five line file
and the command "2dd" is issued,
you would see two "@" symbols replace the deleted lines
and these symbols would disappear when the screen was redrawn.
The "c"
operator can be combined with the same scopes used with the delete operator,
thus providing flexibility to change characters, words, and lines.

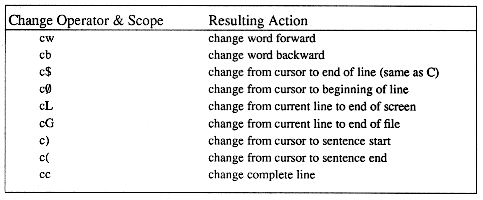

Some of the most common scopes used with the change operator are:
It is important to remember that the current cursor position serves
as the reference point for all of the scopes used with the change operator.
Experimentation with scopes will show you that
when the cursor is sitting in the middle of a word,
the remainder of that word is counted as a scope unit.
For example, if you use the command "cw"
and the cursor is sitting midpoint in a word,
only the remaining portion of that word is changed;
while if the cursor is sitting at the beginning of a word,
the entire word is changed.
Careful positioning of the cursor permits you to change a prefix and suffix
without altering the rest of the word.
Any of the operator-scope commands can be repeated by preceding
them with a number.
Typing "2cw"
will replace the next two words with whatever is keyed in before the
"ESC" is pressed.
To help you visualize the extent of the change that is going to take place,
VI places a marker at the termination point
of the forthcoming change command.
This marker is a "$" and it overwrites the last character that is to be changed.
Then as you type in the replacement text,
the text on that line will begin to be overwritten.
If the replacement text has fewer characters than the material being replaced,
then the remaining old text between the final replacement character
and the "$" maker will disappear when the "ESC"
key is depressed.
If the replacement text has more characters than the old text,
then the new material will seem to overwrite the old text beyond the "$" marker.
This is only temporary,
and when the "ESC" key is pressed all the characters
that were originally beyond the "$" marker will reappear.
This can be done with the "cc". command.
Immediately after giving the line change command,
the editor will erase the current line and leave it blank and
await replacement text.
You may then proceed to key in a small amount of text or many paragraphs.

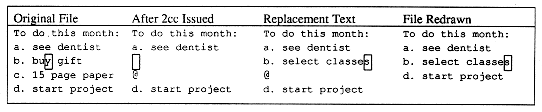

You can change multiple text lines by preceding the
"cc" command with a number.
Thus typing "9cc"
will change nine consecutive lines beginning with the current line.
When you specify more than one line to be changed,
the editor will immediately delete all the specified lines.
On the screen the first line will be blanked with the cursor sitting
on the first character space of that line
and all remaining lines to be replaced with "@" symbols.
Examine the sample text below where two lines are being changed with
"2cc".
The upper-case "C"
command changes the text on the current line from the cursor to the end
of the line as does the command "c$".
Many users disregard the "C"
command and only remember the the lower-case "c$"
command using the same format as previously learned for delete.
The replace command is used to replace portions of text on the screen
with new characters in an overlay fashion.

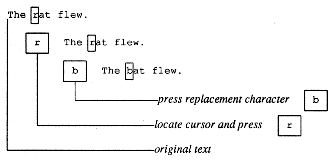

The lower-case "r"
command replaces the single character with the new character you key in.
To accomplish this exchange,
move the cursor so it sits upon the character to be replaced,
press the "r" key,
then press the key you want to see on the screen.
VI will make the exchange.
The editor knows when you use the "r"
key that only one character will be replaced;
therefore,
you remain in command mode throughout the action.
The upper-case "R"
command replaces characters on the screen one at a time with
characters you type in.
Once you type "R",
text input mode is activated permitting you to enter as much
text as you want.
It is important to remember that for each character you key in
one is removed from the file until the end on the current line is reached;
thereafter, any additional text will be inserted between the current
line and the line immediately below it.
This way you can actually replace the end of one line with several lines
of new text.
To stop removing and replacing text you must press the "ESC" key.
If you were to edit the next example using the "R"
to replace the word "

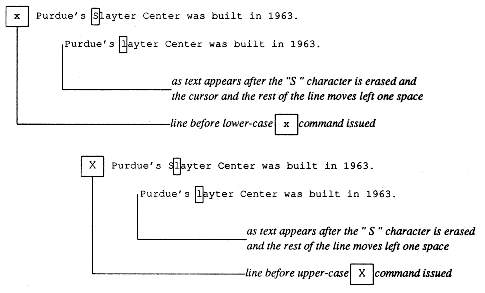

The erase command (also known locally as the "gobble" command)
makes a character vanish.
The upper-case "X"
will cause the character to the left of the cursor to disappear.
At the same time,
the cursor and the remainder of the line move one character space to the left.
The lower-case "x"
command will erase or "eat" the character the cursor is sitting on.
As with many VI commands,
users will frequently elect to remember only one option.
With the erase command it is usually the lower-case "x",
because the cursor is highlighting the character that will disappear;
plus, the lower-case "x"
is easier to type because it does not require using the shift key.
The erase command is wonderful,
but unfortunately, it is easy to get into trouble using it.
What happens is a user places the cursor on a line
where a series of characters is to be removed and
then proceeds to eliminate the unwanted characters
by constantly holding down the "x".
This is logical but, unbeknownst to the user,
instructions to erase are being speedily sent
(for example, ten instructions per second) to the editor
while the editor erases characters on the screen at a slower pace
(maybe five instructions per second).
The user then sees the intended last character disappear and
the erase key is released.
Of course,
the editor by now has a backlog of erase commands
and to the consternation of the user proceeds to "gobble" across the line.
To avoid this problem,
tap the erase key rather than holding it down.
Oh yes,
the good news is that "gobble" will only "eat" one screen width of information.
If ever this happens to you,
you will be very grateful for the last command in this section the
"U" (undo).
Almost every UNIX users will have days, sooner or later,
where for some reason their "brain-hand" coordination short circuits
and they spell familiar words in new and unique ways.
Words like "the" appear on the screen "teh" and "their" becomes "thier".
Transpositions occur when our fingers mix up the proper order of letters
within a word even when the correct spelling is known.

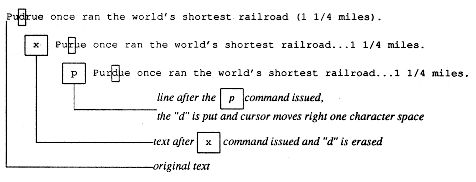

Correcting this common error is easy with the
"xp" (transposition) command.
To use "xp",
locate the cursor on the leftmost letter of the two letter combination,
press "x" to erase the left character.
As this action is being completed,
the remainder of the line will move one character space to the left.
The cursor will now be sitting on the character that had been to the right
of the erased character.
Pressing the "p"
will cause the deleted character to be put to the right of the cursor.
Like magic without referencing either of the effected characters,
simply moving the cursor to the proper location and typing the
"xp" combination results in the two characters reversing order.
The undo command is used to reverse or undo the effects
of an already issued command that has changed the buffer.
The lower-case "u"
(undo) command undoes the effects
of the last command (only one) that you issued.
After you make a number of changes to a single line,
you may decide that you would rather have the original state
of the line back.
The upper-case "U"
undoes all of the changes that you have made to the current line.
However, it does not remember changes you might have made
to that line on previous visits.
For example,
if you make changes to line 12, move elsewhere, then return to line 12
and make more changes, the "U"
will only undo those changes made on the current visit to the line.
The VI editor allows the user to alter a file by way of
copying or deleting a section of material to be inserted at another location.
The user may select to complete the entire rearrangement with
"yank and put" or "delete and put".
In either action,
this adjustment to the text is comprised of two separate command steps:
the first part involves the original location
and the second part deals with where the material is to be placed.
Warning: yank & put and delete & put must be used in tandem.
Inserting some other command action between the two steps,
like correcting a typo,
may cause the editor to become confused and produce unexpected results.
A named buffer is another method to move or duplicate text.
The advantage to using named buffers is that the delete or yank step
can be done now and the put step handled later in the editing session.
In order to duplicate a section of text,
you must first position the cursor
at the material you want to copy.
Next make a copy of the desired text by using the yank command.
This places the copied text into a temporary buffer.
Then immediately relocate the cursor at the point where you want the
copied text placed and instruct VI to put the copy.
The yank command is used to make copies of words, lines, and sections
of text being edited and place them
into the unnamed buffer associated with the editor.
The yank command is available for use in either the lower-case
"y"
format as an operator, or the upper-case "Y"
format as a command.
The lower-case "y"
can be thought of as a yank operator which will combine with
scopes to make an operator-scope command much
in the same way as the delete and change operators.
The scope to be yanked must be specified after the
"y" command.
Some of the most common scopes used with "y"
are summarized next:
It is important to remember,
as in previous examples of operator-scope commands,
that the cursor serves as the reference point and the requested action
is initiated from the cursor backwards or forwards.
Again the editor will permit you to address multiple scopes when using
the yank operator;
for example, the command "3yw"
copies the three words to the right of the cursor.
The function of the upper-case "Y"
command is to copy whole lines of text into the unnamed buffer;
however, the lower-case "y"
operator can also be used to yank a whole line
by typing it twice, "yy".
You can yank more than one line by preceding either
"Y" or "yy"
with a number.
Typing "6Y" or "6yy"
copies the current line and the next 5 lines into the unnamed buffer.
Step 2: Relocating the Copy with the Put Command (p, P)
The put command is used to place the contents of the unnamed buffer
back into the file being edited.
Returning whole lines into the text is handled differently
than word and sentence fragments.
If the text contained in the unnamed buffer forms a line segment
or is a scope which partially spans more than one line,
it will be placed within the current line after the cursor
if you use lower-case "p",
or before the cursor if you use upper-case "P".
On the other hand,
whole lines are returned to the file from the unnamed buffer
without changing the current line.
The lower-case "p"
places the line or lines below the current line and the upper-case
"P"
places them above the current line.
A handy feature of yank & put is the ability to insert
copy repeatedly within the same file.
The format for this action is yank, relocate cursor, put,
relocate cursor, put, etc. until all needed copies have been placed.

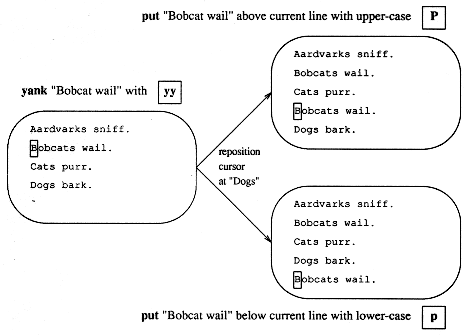

See below for an example of copying a line and moving the copy.
In order to move a section of text from one location in a file
to another location,
you must first position the cursor then delete the text to be moved
into a temporary buffer with the delete command.
Immediately relocate the cursor to the point in the file where you want
to insert the previously deleted material and instruct VI
to put the contents of the unnamed temporary buffer back into the file.
Step 1: Removing Text with the Delete Command (d, D)
Deleting a portion of text with the delete command does not simply
cause the removed material to disappear into thin air;
instead, the deleted text is placed in an unnamed editor buffer.
Thus, all you have to do to move text within a file is delete it
into the unnamed buffer and put it back into the file where you want it.
Since the delete command forms the first step in moving text,
it is possible to move any portion of text which the delete command
can delete, such as characters, words, and lines.
A complete description of the delete command can be found in
the Correcting Text section.
Step 2: Relocating the Deleted Text with the Put Command (p, P)
The put command works in the same manner with delete & put
as it does with yank & put.
Partial sentence fragments are placed
after the cursor within the current line when the lower-case
"p"
is pressed and before the cursor when the upper-case
"P"
is used.
Whole lines, on the other hand,
are returned to the file from the unnamed buffer without changing
the current line.
The lower-case
"p"
placing the line or lines below the current line and the upper-case
"P"
placing them above the current line.
The cursor, while on the current line when the put command is issued,
moves to the first character space on the first line of the freshly
placed text.

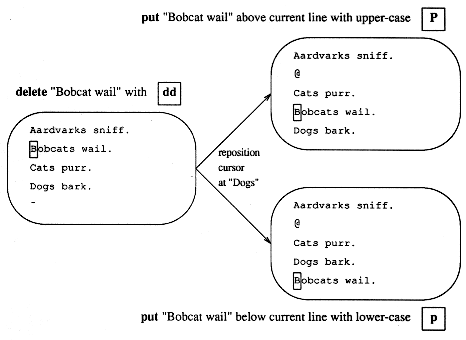

Below is an illustration of how delete & put works when you delete
a whole line and then put the contents of the buffer back into the file.
Named buffers offer another way to copy (yank) or remove (delete) text
and then reenter (put) it into the file.
Usually this is a feature used by more advanced users.
Every time you open a file with the VI editor,
26 named buffers (a-z) are created for your use.
The advantage of using named buffers to duplicate and rearrange text
over the previous discussed yank & put and delete & put
method is that you have the
luxury of copying or removing now and resubmitting the text
later in the editing session.
Since the unnamed buffer associated with the editor only saves
the last deleted or yanked text,
you must put its contents back into the file when moving or copying
before performing some other editor command.
The named buffer permits access to its contents at anytime during
editing session.
Warning: VI's 26 named buffers
remain only for the life of the current editing session.
If you do not use the material placed in a named buffer
during the same session it is filled, the material is lost.
To use a named buffer with the yank and delete commands,
you must first locate the cursor in the text
at the point where the material to be placed in the buffer is situated.
The VI editor is informed you intend to use a named buffer when
the double quote (")
is used followed by the name of the buffer (a-z)
and then the command you want carried out.
Thus typing:
would tell the editor you are:
Warning: These named buffers are not write protected.
If a named buffer contains information and it is called a second
time with its lower-case name,
the original material is over-written.
Later when you are ready to make use of the content of the named buffer,
you would type:
telling the editor you are:
The "putting" action of a named buffer
may be exercised again and again during an editing session
and a copy of its contents put into the file as often as needed.
Different users select named buffers in different ways.
Some users select a particular buffer because of the material to be
placed in it (z buffer for zebras, m buffer for money).
Other users only use favorite buffers (like x, y, z or their initials).
Whatever method you devise for buffer selection,
you must remember its name.
The editor provides no easy way to find out which buffer has which text
segment.
For the user who gets totally mucked-up and can not remember in which buffer
that necessary file section was hidden,
a possible (but painful) solution is to go to the end of the file
and begin emptying buffers one-by-one until the mystery buffer is rediscovered.
The procedure to accomplish this is:
The following section is a
collection of information about the VI
editor that you should know about for successful editing.
Read this section,
apply what is useful now,
and tuck the rest away to return to later
after you have used the editor for a while.
The developers of the VI editor designed VI to be used without
line numbers,
feeling that the average user would locate and manipulate
text by content rather than by line numbers.
Additionally,
because line numbers are constantly changing due to insertions and deletions,
adjusting what you "think" is in a particular line can be dangerous.
The VI editor allows you to view line numbers in your file four ways:
determining your current line number,
a quick glance at line numbers for the complete file,
insertion of line numbers for the current editing session only,
and inclusion of line numbers for every session.
To determine the line number for the line the cursor is on, type
"control g" as discussed in the Positioning Text on the Screen section.
To have a quick one time glance at line numbers,
while you are in the file, type:
This will cause line numbers to be assigned to all lines;
unfortunately, this also causes the complete file to scroll past quickly
stopping on the last screenful of text.
Now if you are working with a short 20-line file,
this is great;
however, if your file contains 200 lines,
you will see the first 180 lines whiz past.
To stop the scrolling action,
you must press the "control s"
to "stop" screen movement and later "control q"
to "quit" the frozen screen.
Some people get very good at timing the "control s"
in order to get the exact point of the file to stop on the screen,
most do not.
Many users find it more convenient to have numbers added to a file
for the current editing session;
knowing that the next time the editor is invoked,
the numbers will not appear.
To have line numbers inserted for the current session,
type:
Immediately you will see the line numbers appear in your file
and they will remain until you exit the editor or type:
The long-term line numbering option available with VI is to place
a line numbering command in the .exrc file located in your HOME directory.
The .exrc file is your personal control file to instruct all faces
of the editor (VI, EX, and EDIT)
on how you want it to perform when invoked.
Not everyone creates a .exrc file.
For those without this file,
the automatic defaults of the editor are imposed, such as no line numbers.
If you place the command "set number"
in your .exrc file,
the next time you invoke VI the editor will check
this file for instructions and
will present the file to you with line numbers.
Later, if you decide you prefer to forgo line numbers,
open your .exrc file and delete the "set number" line.
Type the following
to get automatic line numbering each and every time you use the VI
editor on all files in your .exrc:
To be successful in your editing,
it is necessary to understand what the editor considers a line
and a sentence.
Just for clarity,
a line and a sentence are different animals to the editor.
To the editor, a line begins on the left of a screen
and terminates at a carriage return
Technical typists, secretaries, and students who produce lots
of reports and papers find that editing is much easier to complete
if as you are keying in text you make lines very short.
The breaking up of sentences into many lines is helpful.
Placing a carriage return
Some people like wraparound typing
(straight typing without inserting carriage returns),
this is not recommended.
The next example demonstrates the use of the delete operator with
the end-of-line scope "d$"
on text where the "RETURN"
key follows phrases and punctuation versus using the same operator-scope
command on wraparound typing.
The results are drastically different.
When you print out your file using a text processor,
the computer will connect lines and phrases plus insert spacing
between sentences to make your material look presentable.
For example:
As you are editing files,
you will find it is desirable to combine or join lines.
This is easily done using the "J" (join) command.
An illustration of joining lines is given below.
The cursor is located on the top line when the "J"
command is issued.
VI will move the lower line
and butt it to the end of the upper line.
The editor takes care of necessary spacing for you.
The VI editor requires cpu (central processing unit) time to function.
Each command and action takes a minute amount of time.
This interaction is not a problem
if only one or two people are accessing the system.
However,
the Engineering Computer Network has thousands of users
and at any given moment many hundreds of users may be editing, running programs,
and other system jobs,
all competing for cpu time.
The VI designers foresaw that the editor could be a "time hog"
and decided that one way to reduce some of the editing interaction
with the cpu was to minimize redrawing the screen.
This is why when you are in the text input mode
you do not see the screen being updated until the action is completed
and you return to command mode.
With time conservation as the impetus,
the screen is also not redrawn each time a line is deleted.
Rather, a removed line is replaced
with the "@" symbol to symbolize an empty line,
much as the tilde (~) is used.
Further editing of the text that remains on the screen is still possible.
These "@" symbols remain viewable as long as editing continues on this screen
even though they are never inserted into the text.
Sometimes these "@" symbols are distracting and annoying.
If a user would prefer not to see the "@" symbols,
the screen may be redrawn and the "@" symbols eliminated by issuing the command
"control r" or "control l".
Experiment to see which command works on the terminal you are using.
The VI editor has a powerful and useful companion editor,
EX.
In reality VI and EX are different faces of the same editor;
both were developed from and use the same program base.
VI is a screen oriented editor,
while EX is a line oriented editor.
Since both of these editors are built upon the same base,
when one editor face is installed on a computer
by default the other editor face is also there.
This offers great advantages to the user because
each face possesses individual strengths.
Easy to use commands allow you to transfer
from one face to another in order to increase your editing power
by permitting you to use the desirable features of both editors
and thereby better meet your editing requirements.
The "global substitute" and "text marking" are two favorite
EX commands.
All VI users, frequently without knowing it,
make use of the dual face capability of this editor.
For example, ":w", ":wq", or the ":quit!"
are in reality EX commands.
Also, the "read" command discussed in the Text Insertion section is an EX command!
During an editing session,
anytime you wish to invoke a single EX command,
you must first make sure you are in command mode then type ":"
followed by the command.
The cursor will hop to the bottom of the screen and the command is echoed.
When you press "RETURN",
the EX command is executed and you are brought back
to the command mode of VI.
Sometimes it is useful to issue a series of EX commands.
This is done by typing "Q"
while in command mode and you will enter and remain in the
EX face until you type "vi"
at the EX prompt (:),
such as ":vi".
Immediately you are returned to VI and can continue
the editing session using VI commands.
It is suggested that users do not try to learn both VI
and EX at the same time.
Learn VI well,
then proceed to learn EX.
Attempting to learn both faces of the editor at the same time
leads to frustration and confusion,
as invariably the user mixes up which command to use when.
To make life a bit easier,
VI allows text alteration commands to be repeated by using the
"." (repeat) command.
A handy way to illustrate the repeat command is with the "cw"
command replacing a single word with two new words throughout a paragraph.
In this example,
the first occurrence of "PU" is located with the search command
PU".
Then with the cursor on the "P" of "PU", the "cw"
command is issued followed with "Purdue University" and the
"ESC".
The "n"
key is pressed to find the next occurrence of "PU".
The cursor relocates on the "P" of the next "PU" and all that is required
to change it to "Purdue University" is to type "."
2.1 Calling VI
% vi filename [RETURN]
2.2 Editing A New File
% vi jobjar [RETURN]
2.3 Editing An Existing File
% vi sample [RETURN]
2.4 Saving or Storing A File
3.0 Exiting VI
3.1 Exiting the Editor -- Retaining Changes
No write since last change (:quit! overrides)
3.2 Exiting the Editor--Discarding Changes
3.3 Exiting VI--Keeping Changes and Original Text
4.0 Organization of Vi
4.1 Command Mode
bringing text to the screen: scrolling, searching, using goto
moving the cursor
transferring to text input mode
text insertion: append, insert, open, change, and replace
reading in another file
deleting (lines, words, or characters)
changing (lines, words, or characters)
copying or yanking (lines, words, or characters)
undoing previous command action
using named buffers
joining lines
4.2 Text Input Mode
5.0 Positioning Text on the Screen
5.1 Scrolling the Screen
5.2 Using the GOTO Command
"filename" line 17 of 122 -- 13%
5.3 Moving by Searching
/catnip [RETURN]
Pattern not found
6.0 Positioning the Cursor
6.1 Major Screen Movements
6.2 Minor Screen Movements
Scope Text Unit Encompassed
________________________________
0 beginning of line (zero)
$ end of line
W w word right
B b word left
E e end of word right
7.0 Text Insertion
7.1 Append Command (a, A)
7.2 Insert Command (i, I)
7.3 Open Command (o, O)
7.4 Read Command (:r)
:r filename
8.0 Correcting Text
8.1 Delete Text (d, D)
8.2 Change Text (c, C)
The change command is used to replace portions of the text
in the file being edited with new material that is keyed in.
The change operator differs from the delete operator in that
the text input mode is activated when issued.
When you have completed keying in the new material to replace the
identified changed text, you are required to press the "ESC"
key to return to command mode.
Original File The cursor is on the "
y" of "b. buy gift".
After 2cc The lines "1b. buy gift" and "c. 15 page paper" are deleted.
The cursor moves to the first character space on first removed line;
"@" symbol indicates where the additional line was removed.
Replacement Text New material keyed in "b. select classes"; and "ESC" key pressed
File Redrawn Screen redrawn; "@" symbol disappears.
8.3 Replace Command (r, R)
classes" with "program" followed by a
"RETURN"
and then continue keying in the extra line "c. do speech" and
"ESC", the screen would look like the next table.
8.4 Erase Command (x, X)
8.5 Transposition Command (xp)
8.6 Undo Command (u, U)
9.0 Rearranging and Duplicating Text
9.1 Copying Text and Moving the Copy
Step 1: Copying Text with the Yank Command (y, Y)
9.2 Deleting Text and Moving It
9.3 Named Buffers
"g7yy "g7dd
" calling forth a named buffer
g its name is g
or 7yy yanking 7 lines
7dd deleting 7 lines
Anytime during a session you wish to append more information into a
named buffer,
it is done by recalling the buffer with a capital letter for a name.
To append information to the bottom of the buffer used above,
you would type:
"G3yy "G3dd
"gp "gP
" calling forth a named buffer
g its name is g
or p putting the contents below the current line
P putting the contents above the current line
10.1 Miscellaneous Information
10.1 Creating Line Numbers
:%nu
:set number
:set nonu
% cd
% echo 'set number' >> .exrc
%
10.2 Lines and Sentences in VI
10.3 Joining Lines
10.4 Redrawing the Screen
10.5 Accessing the EX Editor
10.6 Repeating a Command
